Manker E04 Ultra-Compact Flood LED Flashlight

E04 Bundle

 Product Description

Specification & Features:
Emitter: Cree XPL HD LED
Power by 1x 16340 or 1x CR123 battery
Maximum output:550 lumens
120° uniform flooding
Maximum beam intensity: 200cd,
maximum beam distance: 30 meters
Working voltage: 2.2 - 4.4v
Driver: Most efficiency constant current circuit
Surface treatment: Premium Type III hard-anodized anti-abrasive finish
Lens: Toughened ultra-clear glass lens with anti-reflective coating
Waterproof: IPX-8,2M underwater
Impact resistance: 2Meters
Magenet Tailcap
Length: 55mm
Weight: 63.9g (with USB 16340 battery)
Accessories: O-ring *1, Lanyard *1, User manual *1, USB rechargeable 16340 li-ion battery *1

Brightness Levels & Runtime
Moonlight: 1-30lm 7hrs,
Low 100lm 1.7hrs,
High 200lm 1.4hrs,
Turbo 550lm 1hrs,
Strobe 550lm

Manker E04 Specification

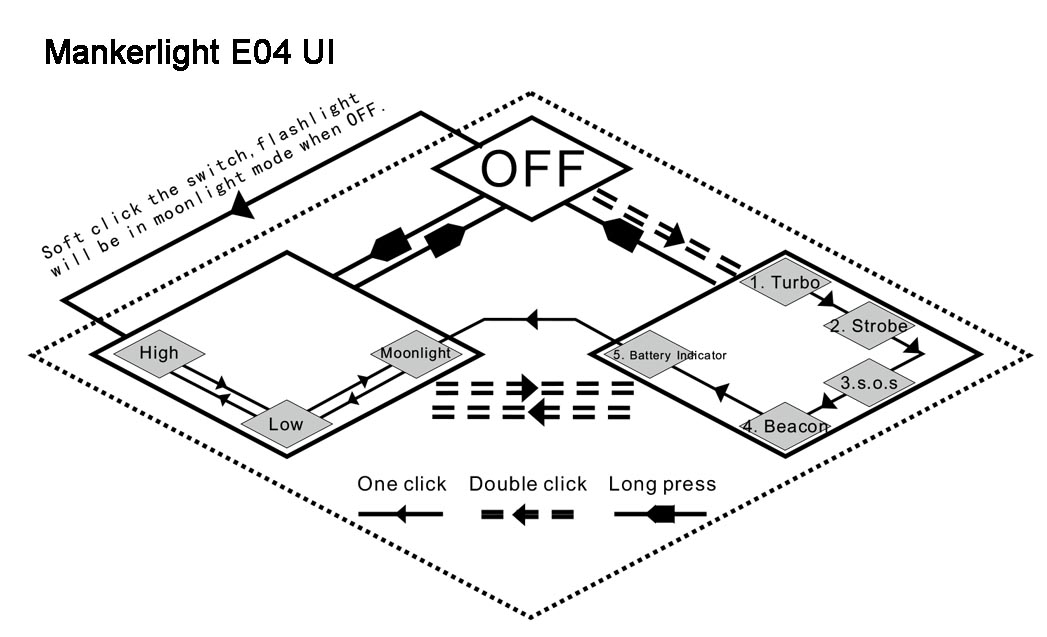

Manker E04 UI
1.When the flashlight is off, one click, access to moonlight mode (left part of the figure), one click to circle: moonlight-Low-Medium -High. Long press
for off.
2.When the flashlight is off, long press to access to the mode your last use as in left part of the figure (Memory function), one click for circle. Long press for off.
3.When the flashlight is off, double click access to Turbo, one click for circle. Long press for off.
4.When the flashlight is on, double click to switch between the two groups(left and right part of the figure)

Side switch battery indicator:
1. Blue: More than 75%
2. Purple: 50%
3. Red: Less than 20%

Lock out:
One click - Double - Triple from any mode to lock out the flashlight.(Only the battery indicator works when lock out)

Engineering Mode(Choose output level for Moonlight mode):
Long press for off and still hold on, the side button battery indicator will turn on and then quick click for 4 times to get access to engineering mode. One click to check different level and long press to make your final choice.

 Find Similar Products by Tag

 Product Reviews

Write review

  1. Power and versitility in a small package 4 Star Review

    Posted by on 14th Dec 2019

    Very solid product, perfect for EDC and more. I'm giving it 4 stars since moonlight mode doesn't go below 1 lumen and for the fact that the clip can't be rotated. Other than that, excellent and good looking flood light with endless possibilities. Great battery that you can charge with a micro-USB cable if you don't care for battery chargers. I would recommend this to anyone looking to buy their first Manker. Great value too! Thanks Manker!
